Smart ULS 2326W TUYA Level Sensor

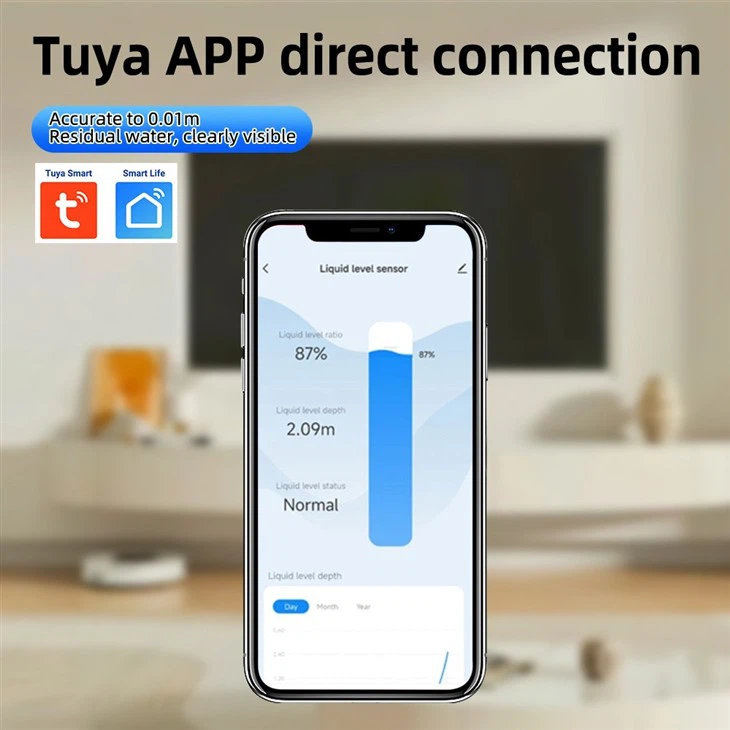

Through the Smart Life App, establish a connection with the wired intelligent socket paired with the tank level controller sensor to enable automatic switching control of the water pump.
| Frequency 40kHz |
| Power Supply DC 5V |
| Current Normal State<110mA |
| Operating Temp -10℃-70℃ |
| Communication Wi-Fi(2.4GHz) |
| Measuring Range 0.1-3 meters |
| Measurement Tolerance ±(1%Reading+10mm) |
| Material Nylon |
PRODUCT DETAILS
Description
Mechanical hardwiring is mandatory for the connection between the smart plug and the intelligent water level controller sensor, and this wired smart plug features a WiFi-independent operating design.
The water pump’s power plug shall be connected to the smart plug, with the pump’s rated power limited to ≤ 3 kilowatts.
Upon the tank water level reaching the preset low-level alarm value, the App will generate a low-level indication signal and activate the water pump for water replenishment. When the water level reaches the preset high-level threshold, the App will issue a high-level indication and deactivate the water pump immediately.
Specification
Size
function

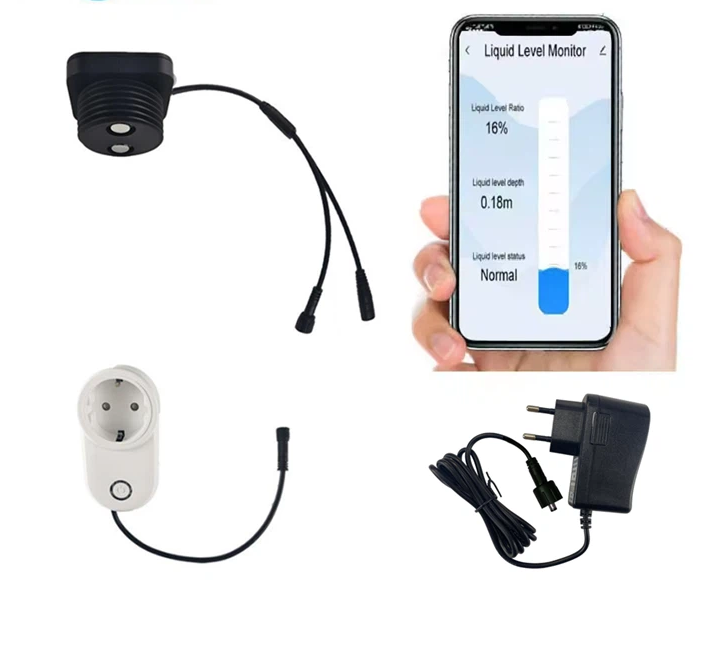

ULS 2326W water tank level control system continuously or regularly measures the liquid level height in the water tank/container and sends the data to the Tuya IoT cloud platform via Wi-Fi.
Liquid level ratio: 0%-100%;
Liquid real-time depth: Max 3-meter;
Liquid levelstate: low/normal/high;
Liquid level change history;
Liquid level alarm history;
Free high and low level pop-up alarm notifications.
Application
ULS 2326W liquid level measurement system is widely used in scenarios where it is necessary to prevent dry burning, overflow and achieve automatic liquid replenishment
Household/small water systems: Automatic water replenishment for water towers/storage tanks, automatic water change for fish tanks/aquariums, and automatic irrigation for gardens.
Agriculture/Breeding: Automatic water replenishment for livestock drinking troughs, management of greenhouse irrigation water tanks.
Industrial/Commercial: Liquid level control of small storage tanks, circulation and replenishment of equipment coolant.
Installation tips
The ULS 2326W water level detection system sensor needs to be installed vertically above the water tank by opening holes or fixed with brackets. Stay in the middle position away from the water tank wall, be careful to avoid the water inlet, and there should be no suspended matter in the water tank that affects the ultrasonic detection.
